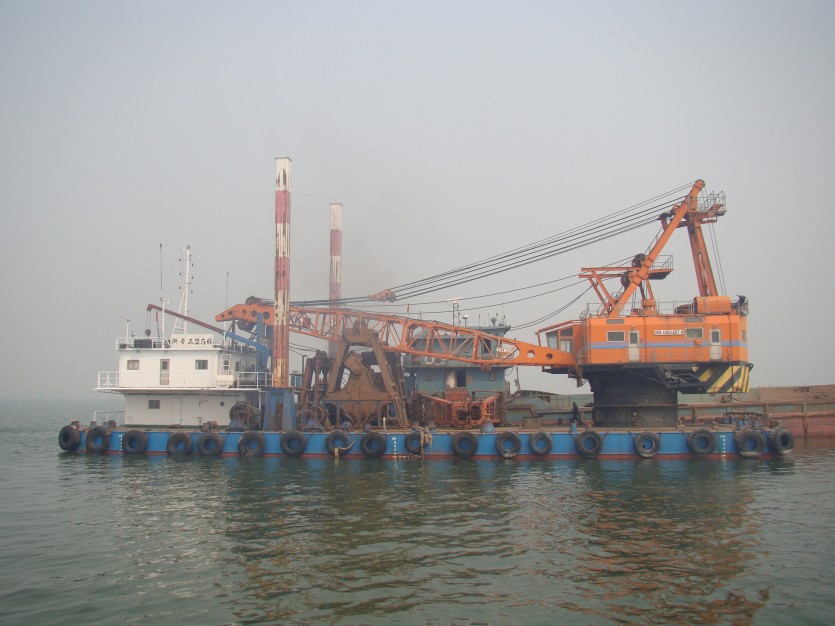

Sale Dredger Vessel
페이지 정보
본문
Flag CHINA
Class ZC
BLT 1996 MAY MUNETA ZOSEN K.K,JAPAN
Port of Registry CHINA
Type of Vessel DREDGE SHIP
Call Sign -
IMO NO. -
length 41.46 M
breadth 17.0M
Moulded Depth 3.30M
Gross Tonnage 770 MT
Net Tonnage 231 MT
Navigation Area Coastal(A1+A2)
Summer Deadweight -
Type of Main Engine -
Power -
Builder of Main Engine -
Type of auxiliary engine HINO MIOC-TB/S6K/6D16-T
Power 139KW/72KW/119KW
When Built 1996-05-01
Builder Japan zhongtian shipbuilding
Material of Hull Steel
2. Air Compressor
2.1 Quantity： | 1 |
Work Pressure: 0.8 Mpa
type: GNO-2C
Engine room Pumps
General water pump
Model: SUSQGS5.5 Centrifugal
Lift : 30.9 M
Volume: 390L/min
Crane main engine cooling water pump 3.2.1 Model: U70427C4 Centrifugal
3.2.2 lift: 26m
3.2.3 Volume: 1200L/min
windlass hydraulic pump (2pcs)
Model: ALOV100
MAX Volume: 180L/min
3.4 OIL TRANSFER PUMP
4. Compressed air bottle: 71L
5. Oil tank :
Only one oil tank on board, location at engine room, and the capacity was unknown due to did not find the tanks capacity plan on board.
Remark: a lot of oil had found in engine room bottom, one generator(UCI-224) had been dismantle and can not using.
VII Ballast tanks
Total 4 ballast tanks on board:
No. 1 (P) | No. 1 (S) | No. 2 (P) | No. 2 (S) |
78.7t | 78.7t | 76.6t | 76.6t |
VIII Crane
Type and model: SKK-16011GDT-N
made: Oct. 2007
Engine: 1. TYPE:MITSUBISHI S12N-PTK
Cylinders: 12
Power: 1310 ps
Rotate speed: 1800 rpm
The crane has one arm, the load 40T was marked on the arm. The wire diameter is 38mm
The parts and hydraulic devices show in normal condition, and much oil found in crane, please refer to photos.
IX Dredging buckets
buckets | 1 | 2 | 3 | 4 |
|
|
|
|
|
Type | 6 petal | standard | standard | standard |
|
|
|
|
|
capacity | Dia: 230cm | 370x170cmm | 420x200cm | 9 M3 |
| Depth:140cm | Depth:140cm | Depth:170 |
|
|
